Product Overview – Nano-Fit Power Distribution
Cable Assembly

This custom Nano-Fit power distribution cable assembly is designed for low-voltage DC
power routing, control systems, industrial electronics, medical equipment, and embedded

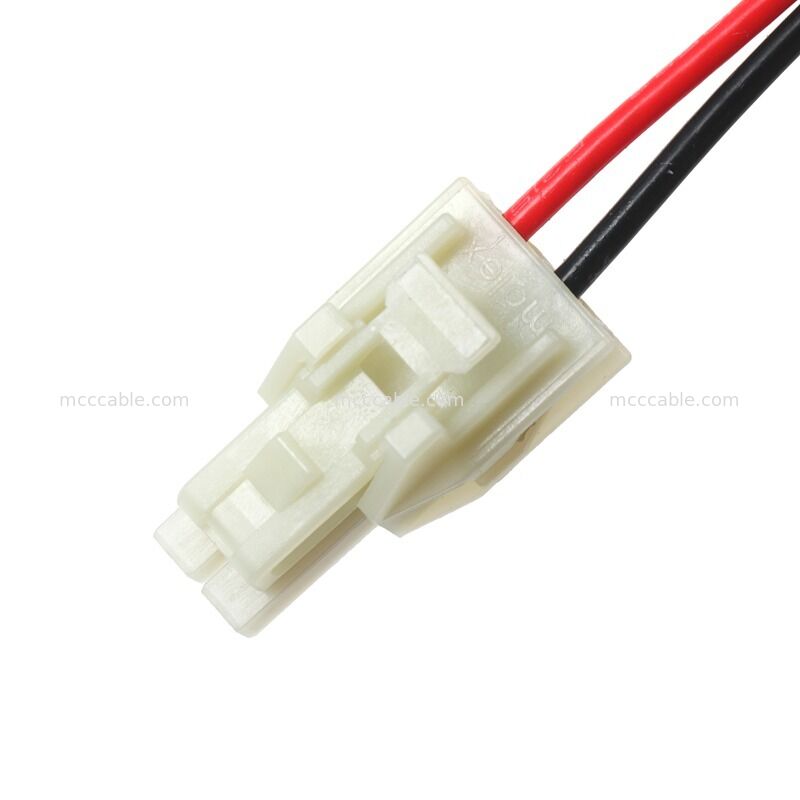

devices. The assembly features a 4-position Molex Nano-Fit female connector on one side
and multiple fully insulated 6.3 mm quick-disconnect terminals on the opposite side for
reliable power distribution.

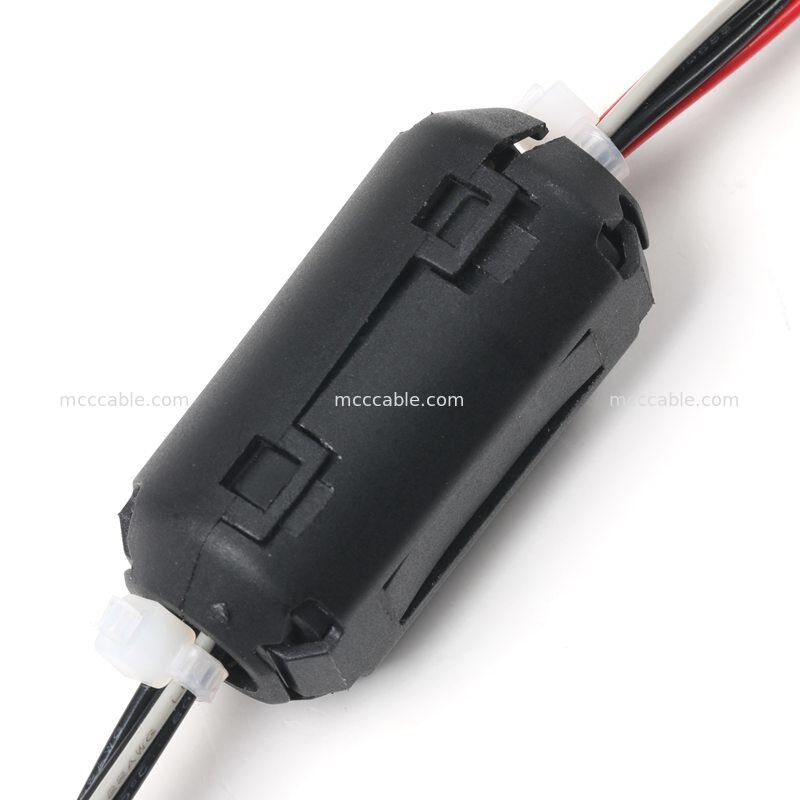

The integrated ferrite core helps suppress electromagnetic interference (EMI) and improves
signal and power stability in electrically noisy environments. Manufactured using AWG22
stranded wire, this harness provides excellent flexibility, secure termination, and long-term
reliability for OEM equipment and industrial installations.

Product Features – Nano-Fit Power Harness

Compact Nano-Fit Interface

Small footprint connector system suitable for space-constrained equipment.

Integrated EMI Ferrite Suppression

Ferrite core reduces conducted and radiated electromagnetic noise.

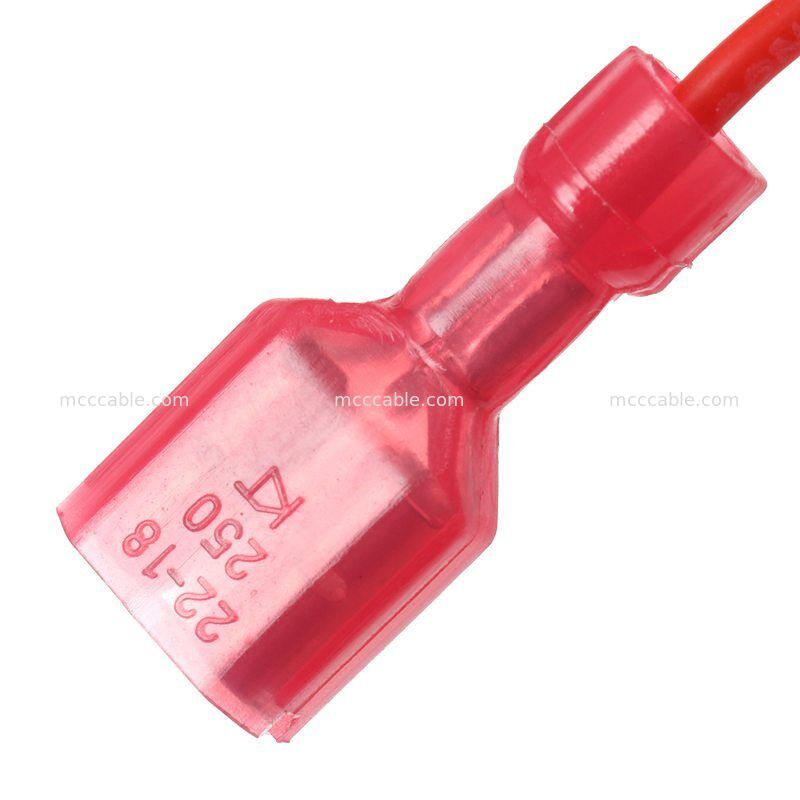

Fully Insulated Female Terminals

Enhanced operator safety and improved protection against accidental short circuits.

Multiple Branch Power Outputs

Supports power distribution from a single connector to multiple devices.

Custom Wire Routing

Available in custom lengths, colors, wire gauges, and connector configurations.

OEM Manufacturing Support

Ideal for equipment manufacturers requiring customized power harness assemblies.

Product Specifications – Nano-Fit Power Distribution
Harness

Item	Specification
Product Type	Power Distribution Cable Assembly
Connector A	4 Position Nano-Fit Female Connector
Connector B	Fully Insulated Female Quick Disconnect Terminal
Terminal Size	6.3 mm × 0.8 mm
Wire Gauge	AWG22
Conductor Type	Stranded Copper
Wire Colors	Red / Black / Grey
Ferrite Core	Integrated Snap-On Ferrite
Insulation Type	PVC
Voltage Rating	Custom
Current Rating	Custom
Cable Length	CUSTOM
Operating Temperature	Custom
RoHS Compliance	Available
REACH Compliance	Available

Product Applications – Nano-Fit Power Cable Assembly

Medical Equipment Power Distribution

Used inside therapy systems, monitoring devices, and diagnostic equipment.

Industrial Automation Systems

Provides low-voltage power connections between control boards and field devices.

Embedded Electronics

Suitable for internal power routing within compact electronic products.

Power Supply Modules

Connects DC power modules to multiple subsystems.

Test and Measurement Equipment

Used in laboratory instruments and testing systems.

OEM Equipment Manufacturing

Widely applied in custom electronic assemblies and industrial machines.

Product Custom Manufacturing Capabilities

Sino-conn provides complete customization services for Nano-Fit power harnesses:

• Custom cable lengths
• Different Nano-Fit circuit counts
• Wire gauge options from AWG28–AWG16
• Ferrite core selection
• Multiple terminal styles
• Overmolding options
• Label printing
• Heat shrink identification
• 100% continuity testing
• Functional verification before shipment
